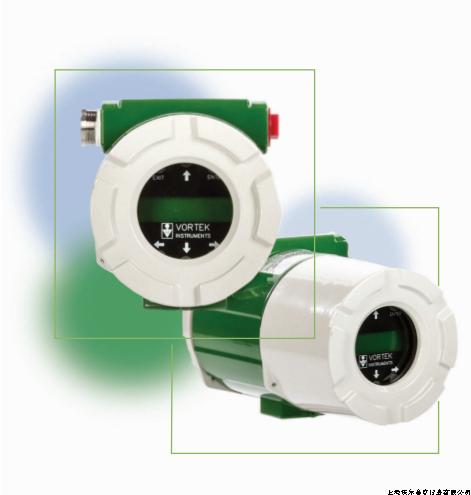

VorTek Instruments’ FlowCalc flow computer is a field mounted flow computer which can be used for liquid and gas applications, including custody or non-custody measurements. FlowCalc is the most powerful flow computer of its kind and represents some of the latest advancements in operation, performance, and modularity. FlowCalc has been designed to meet the requirements of a wide variety of specialized industries using a single hardware platform thus reducing spare parts requirements, training and calibration costs, and lowers the overall cost of ownership. When used for differential pressure applications, advanced diagnostic software is able to continually monitor and verify the meter’s primary element health and confirm output uncertainty. The FlowCalc product line is available with a wide range of options and configurations to meet your specific application requirements.

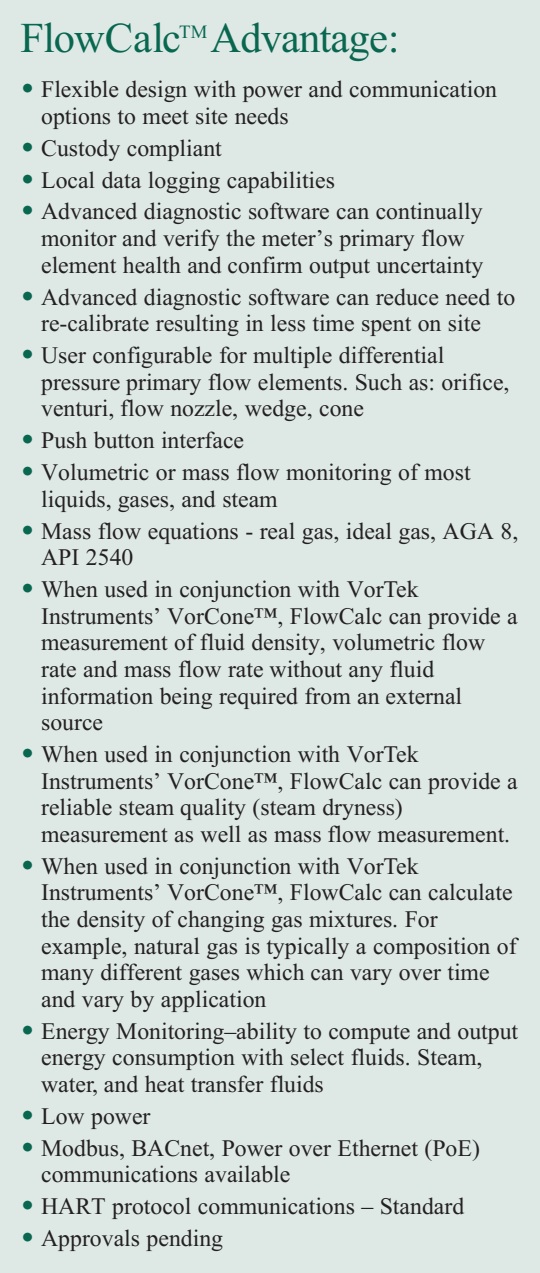

Flexible design with power and communication options to meet site needs.
Custody compliant.
Local data logging capabilities.

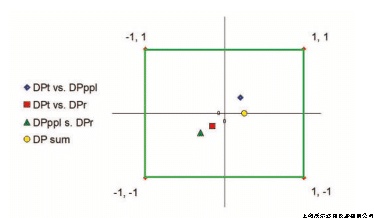

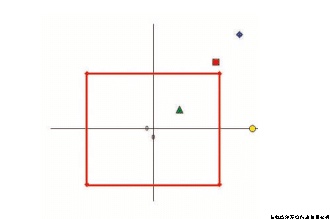

Advanced diagnostic software can continually monitor and verify the meter’s primary flow element health and confirm output uncertainty.
Advanced diagnostic software can reduce need to re-calibrate resulting in less time spent on site.
User configurable for multiple differential pressure primary flow elements. Such as: orifice, venturi, flow nozzle, wedge, cone.
Push button interface.
Volumetric or mass flow monitoring of most liquids, gases, and steam.
Mass flow equations - real gas, ideal gas, AGA 8, API 2540.
When used in conjunction with VorTek Instruments’ VorConeTM, FlowCalc can provide a measurement of fluid density, volumetric flow rate and mass flow rate without any fluid information being required from an external source.

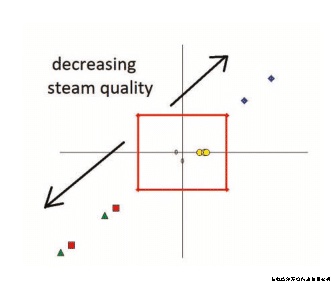

When used in conjunction with VorTek Instruments’ VorConeTM, FlowCalc can provide a reliable steam quality (steam dryness) measurement as well as mass flow measurement.
When used in conjunction with VorTek Instruments’ VorConeTM, FlowCalc can calculate the density of changing gas mixtures. For example, natural gas is typically a composition of many different gases which can vary over time and vary by application.
Energy Monitoring–ability to compute and output energy consumption with select fluids. Steam, water, and heat transfer fluids.
Low power.
Modbus, BACnet, Power over Ethernet (PoE) communications available.
